Conduit

A fullstack Conduit application powered by:

• Frontend: Angular – conduit-frontend
• Backend: Django – conduit-backend

---

Table of Contents

• Conduit Project (Dockerized Fullstack App)
  • Table of Contents
  • Project Structure
  • Quickstart
  • Start the App
  • Usage
  • Author

Project Structure

conduit/
├─ docker-compose.yml
├─ Conduit_Container_Checkliste.pdf
├─ .dockerignore
├─ .gitignore
├─ .gitmodules
├─ conduit-backend/
│  ├─ .env
│  ├─ Dockerfile
│  ├─ start.sh
│  └─ ...
└─ conduit-frontend/
   ├─ Dockerfile
   ├─ src/
   │  ├─ environments/
   │  │  └─ environment.development.ts
   │  └─ ...
   └─ ...

Quickstart

1. Clone the fullstack project with submodules:

git clone --recurse-submodules https://github.com/GeorgStrassberger/conduit.git

cd conduit

2. Update frontend submodule:

cd conduit-frontend
git checkout docker
git pull origin docker

3. Update backend submodule:

cd ../conduit-backend
git checkout docker
git pull origin docker

4. Backend .env Setup

   Inside conduit-backend/:

   cp .env.example .env
   nano .env

   Edit your environment variables:

   # DJANGO SUPERUSER
   DJANGO_SUPERUSER_EMAIL=admin@example.com    # <- change
   DJANGO_SUPERUSER_NAME=admin                 # <- change
   DJANGO_SUPERUSER_PASSWORD=adminpass         # <- change

   # SECURITY
   SECRET_KEY=your-django-secret-key           # <- change
   DEBUG=True
   ALLOWED_HOSTS=localhost,127.0.0.1           # <- change

   # CORS
   ALLOWED_ORIGIN=http://127.0.0.1:8082        # <- change

   Save & Exit: CTRL + O, then CTRL + X

5. Frontend Environment Setup

   Inside conduit-frontend/src/environments/:

   cd ../conduit-frontend/src/environments/

   cp environment.development.ts environment.ts
   nano environment.ts

   Edit as needed:

   export const environment = {
     production: true,                          // set to TRUE
     apiUrl: "http://localhost:7000/api",       // your host-ipv4
   };

   Save & Exit: CTRL + O, then CTRL + X

Start the App

Go back to root directory conduit:

cd ../../..

Build containers:

docker compose build

Run services:

docker compose up -d

Verify that containers are running:

docker ps

You should see output like this:

CONTAINER ID   IMAGE                  COMMAND                  STATUS         PORTS
abcd1234       conduit-backend        "gunicorn ..."           Up 10 seconds  0.0.0.0:7000->7000/tcp
efgh5678       conduit-frontend       "nginx -g ..."           Up 10 seconds  0.0.0.0:8082->80/tcp

Usage

Replace localhost with your host IP if needed.

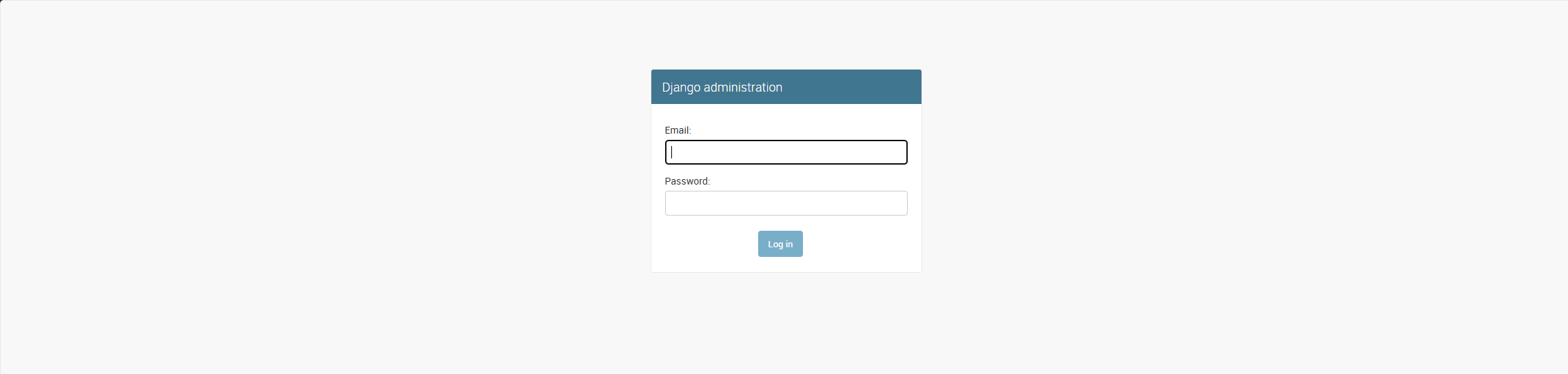

• Backend: http://localhost:7000/admin

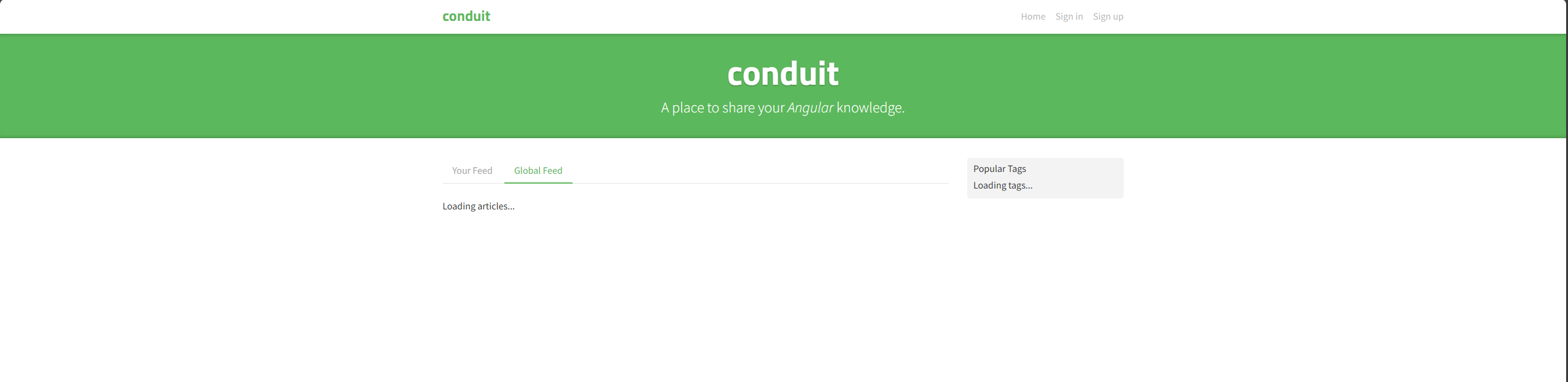

• Frontend: http://localhost:8082
